Details

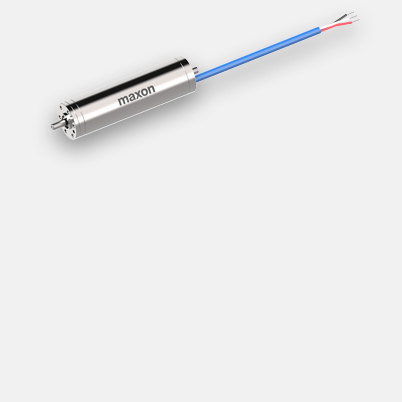

EC 22 Ø22 mm, brushless, 80 Watt, sensorless | Heavy Duty – for applications in air
Part number 426449
For more information, please contact our sales support with the request form. Thank you
Specifications
Technical illustrations

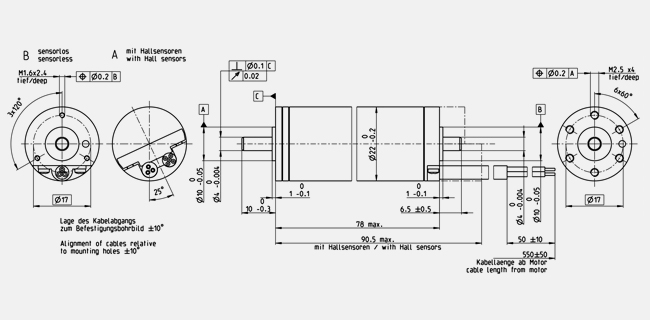

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 48 V |
| No load speed | 13200 rpm |
| No load current | 83.1 mA |
| Nominal speed | 11400 rpm |
| Nominal torque (max. continuous torque) | 56.6 mNm |
| Nominal current (max. continuous current) | 1.7 A |
| Stall torque | 460 mNm |
| Stall current | 13.4 A |
| Max. efficiency | 85 % |
| Characteristics | |
| Terminal resistance | 3.59 Ω |
| Terminal inductance | 0.626 mH |
| Torque constant | 34.4 mNm/A |
| Speed constant | 278 rpm/V |
| Speed / torque gradient | 29 rpm/mNm |
| Mechanical time constant | 2.31 ms |
| Rotor inertia | 7.63 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 9.12 K/W |
| Thermal resistance winding-housing | 0.92 K/W |
| Thermal time constant winding | 5.84 s |
| Thermal time constant motor | 462 s |
| Ambient temperature | -55...+200 °C |
| Max. winding temperature | +240 °C |
| Mechanical data | |
| Bearing type | Waelzlager |
| Max. speed | 20000 rpm |
| Axial play | 0 mm, at radial load < 5 N |
| 0.14 mm, at radial load > 5 N | |
| Max. axial load (dynamic) | 8 N |
| Max. force for press fits (static) | 98 N |
| (static, shaft supported) | 250 N |
| Max. radial load | 16 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 210 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
