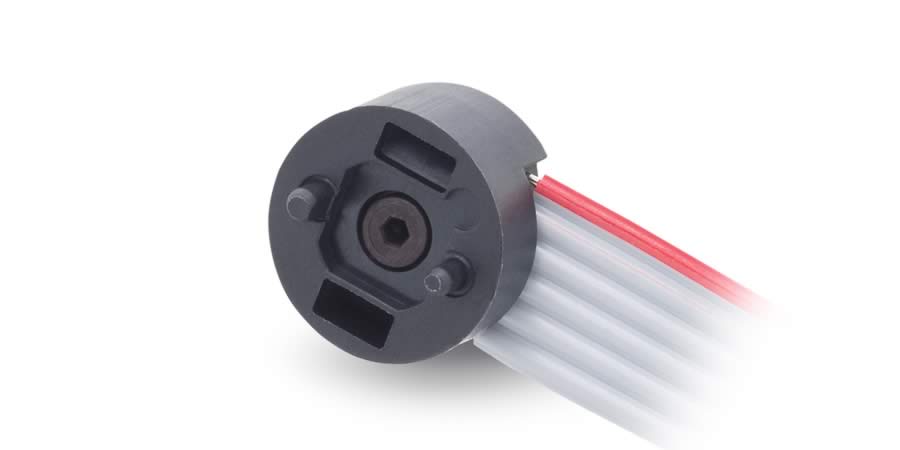

Encoder MR, Type S, 16 CPT, 2 Channels

Part number 201933

Encoder MR, Type S, 16 CPT, 2 Channels
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 £ 66.58
5-19 £ 58.77
20-49 £ 49.59
from 50 On request

NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.

Sensors can be purchased only as a component of a combination.

Specifications

General information
Counts per turn 16
Number of channels 2
Line Driver No
Max. mechanical speed 30000 rpm
Technical Data
Supply voltage Vcc 2.7...5.5 V
Output signal TTL
Driver used logic TTL
Output current per channel 0...5 mA
Phase shift 90 °e
Phase shift, inaccuracy 45 °e
Index synchronized to AB No
Max. moment of inertia of code wheel 0.005 gcm²
Operating temperature -40...+85 °C
Product
Weight 0 g

Description

High precision encoders, DC tachometers and resolvers with a high signal resolution are mounted exclusively on motors with through shafts for resonance reasons. The assembly requires adjustment to the motors and may only be done in the delivery plant.
