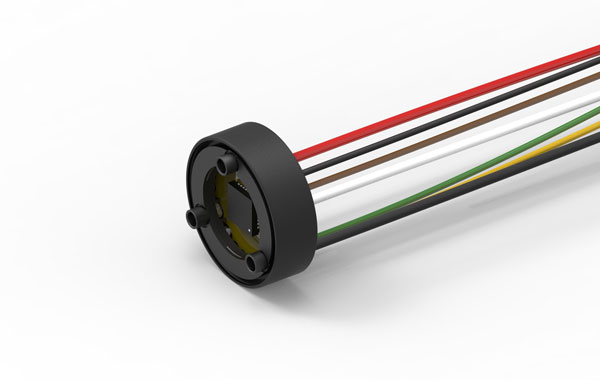

Encoder ENX 19 EASY INT Absolute, with SSI interface

Encoder ENX 19 EASY INT Absolute, with SSI interface
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 £ 89.32*
5-19 £ 69.80*
20-49 £ 56.91*
from 50 On request

*Configurable products must be configured before ordering.
Prices may vary.

Sensors can be purchased only as a component of a combination.

Specifications

General information
Steps per turn 4096
Resolution 12 bit single turn
Max. length of encoder housing -1.4 mm
Max. electrical speed 200000 rpm
Max. mechanical speed 200000 rpm
Technical Data
Data encoding gray symmetric
Min. clock frequency 0.04 MHz
Max. clock frequency 4 MHz
Timeout 20 us
Supply voltage Vcc 5.0V ± 10.0%
Output signal CMOS
Output signal Absolute SSI
Driver used logic Single Ended, CMOS
Output current per channel -20...20 mA
Signal rise time 60 ns
Measurement condition for signal rise time CL=25pF, RL=1kOhm
Signal fall time 60 ns
Measurement condition for signal fall time CL=25pF, RL=1kOhm
Direction of rotation positive Counting CW
Typical current draw at standstill 22 mA
Max. moment of inertia of code wheel 0.005 gcm²
Operating temperature -40...+125 °C
Orientation of encoder output to motor flange 0 °
Product
Weight 5 g

Description

maxon ENX encoders feature a robust design and high signal quality. The ENX EASY INT Absolute is a sterilizable single-turn absolute encoder with 4,096 steps per turn for an SSI or BiSS-C interface. The ESD protection circuitry, cable strain relief, and robust general design of the ENX series make the ENX EASY INT an excellent choice for high-precision position and speed control.
