Specifications
| Values at nominal voltage |
| Nominal voltage |
24 V |
| No load speed |
3170 rpm |
| No load current |
658 mA |
| Nominal speed |
2490 rpm |
| Nominal torque (max. continuous torque) |
729 mNm |
| Nominal current (max. continuous current) |
9.43 A |
| Stall torque |
5070 mNm |
| Stall current |
111 A |
| Max. efficiency |
85 % |
| Characteristics |
| Terminal resistance |
0.216 Ω |
| Terminal inductance |
0.232 mH |
| Torque constant |
71.2 mNm/A |
| Speed constant |
134 rpm/V |
| Speed / torque gradient |
0.407 rpm/mNm |
| Mechanical time constant |
12.3 ms |
| Rotor inertia |
2880 gcm² |
| Thermal data |
| Thermal resistance housing-ambient |
1.37 K/W |
| Thermal resistance winding-housing |
1.13 K/W |
| Thermal time constant winding |
21.3 s |
| Thermal time constant motor |
203 s |
| Ambient temperature |
-40...+100 °C |
| Max. winding temperature |
+125 °C |
| Mechanical data |
| Bearing type |
ball bearings |
| Max. speed |
5000 rpm |
| Axial play |
0 mm, at radial load < 58 N |
|
0.14 mm, at radial load > 58 N |
| Max. axial load (dynamic) |
34 N |
| Max. force for press fits (static) |
440 N |
| (static, shaft supported) |
8000 N |
| Max. radial load |
100 N, 10 mm from flange |
| Other specifications |
| Number of pole pairs |
11 |
| Number of phases |
3 |
| Number of autoclave cycles |
0 |
| Product |
| Weight |
624 g |

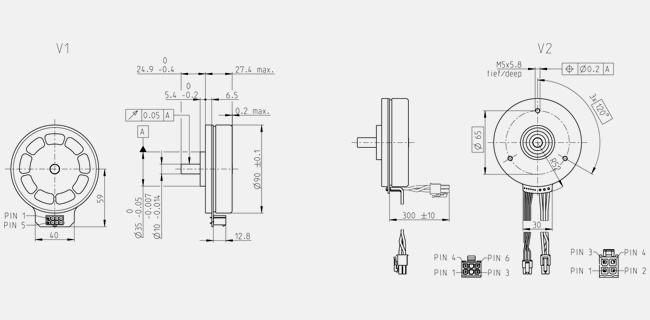

Description

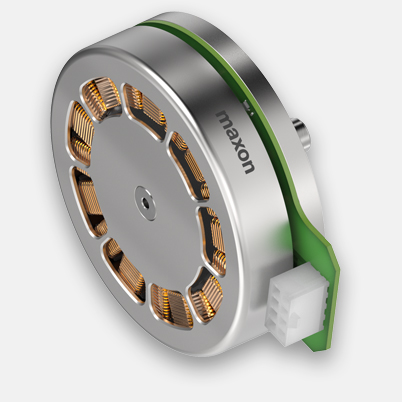

The flat design of the brushless EC flat motors makes them the perfect solution for many applications. The thought-through, simple design makes it possible to largely automate the manufacturing—this is reflected by the economical price.
The open rotor supports cooling during operation, which permits greater continuous torques.
