Specifications

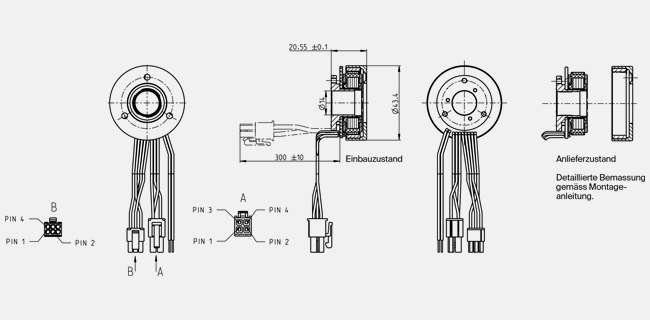

Information: Drawings are not to scale.
| Values at nominal voltage |
| Nominal voltage |
12 V |
| No load speed |
4390 rpm |
| No load current |
164 mA |
| Nominal speed |
3010 rpm |
| Nominal torque (max. continuous torque) |
57.1 mNm |
| Nominal current (max. continuous current) |
2.16 A |
| Stall torque |
252 mNm |
| Stall current |
9.91 A |
| Max. efficiency |
76 % |
| Characteristics |
| Terminal resistance |
1.21 Ω |
| Terminal inductance |
0.403 mH |
| Torque constant |
25.4 mNm/A |
| Speed constant |
375 rpm/V |
| Speed / torque gradient |
17.9 rpm/mNm |
| Mechanical time constant |
28.1 ms |
| Rotor inertia |
150 gcm² |
| Thermal data |
| Thermal resistance housing-ambient |
6.61 K/W |
| Thermal resistance winding-housing |
3.92 K/W |
| Thermal time constant winding |
10.2 s |
| Thermal time constant motor |
291 s |
| Ambient temperature |
-40...+100 °C |
| Max. winding temperature |
+125 °C |
| Mechanical data |
| Bearing type |
keine |
| Max. speed |
10000 rpm |
| Axial play |
0 mm, at radial load < 0 N |
|
0 mm, at radial load > 0 N |
| Max. axial load (dynamic) |
0 N |
| Max. force for press fits (static) |
0 N |
| (static, shaft supported) |
0 N |
| Max. radial load |
0 N, 5 mm from flange |
| Other specifications |
| Number of pole pairs |
8 |
| Number of phases |
3 |
| Number of autoclave cycles |
0 |
| Product |
| Weight |
89 g |
| | | Continuous operation range
|
| | |
|
| | | |
| | | Short term operation range
|
| | |
|
Description

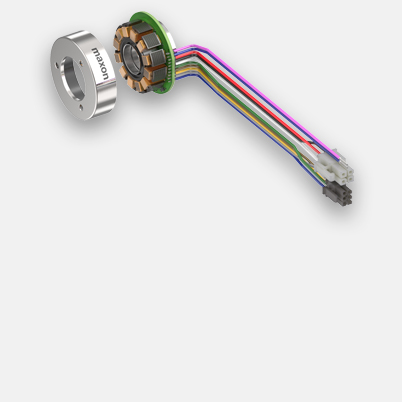

The EC frameless motors are BLDC motor kits. Rotor and stator are delivered separately, without bearings and motor shaft, and connected only during assembly. The flat design, the high torques and plenty of space for cable glands allow a high level of integration into your application.
