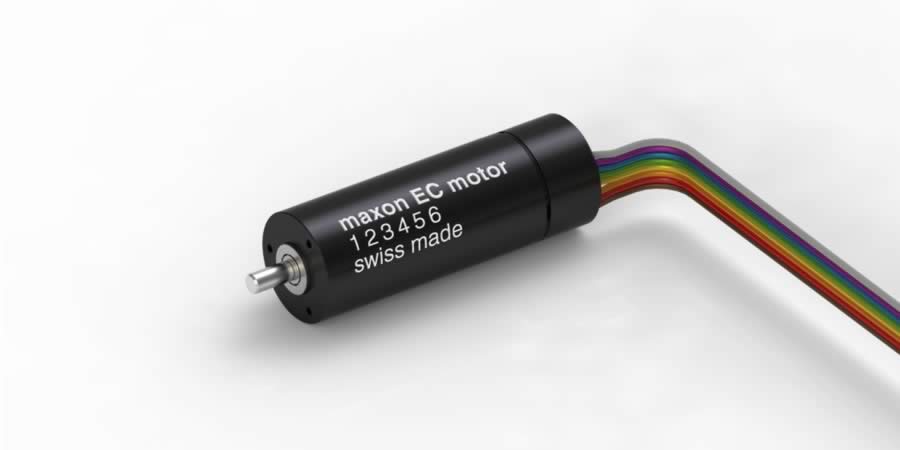

NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.
Specifications
Technical illustrations

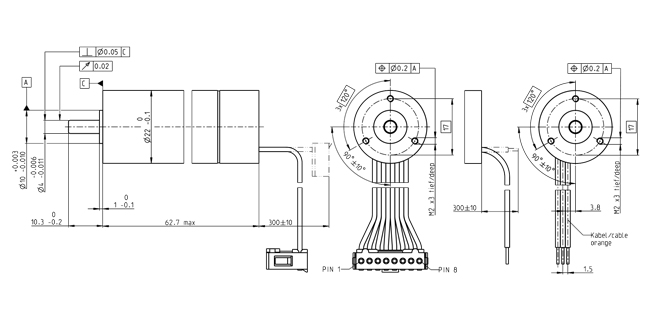

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 24 V |
| No load speed | 29500 rpm |
| No load current | 257 mA |
| Nominal speed | 27000 rpm |
| Nominal torque (max. continuous torque) | 48.5 mNm |
| Nominal current (max. continuous current) | 6.42 A |
| Stall torque | 691 mNm |
| Stall current | 89.1 A |
| Max. efficiency | 90 % |
| Characteristics | |
| Terminal resistance | 0.269 Ω |
| Terminal inductance | 0.035 mH |
| Torque constant | 7.75 mNm/A |
| Speed constant | 1230 rpm/V |
| Speed / torque gradient | 42.8 rpm/mNm |
| Mechanical time constant | 1.83 ms |
| Rotor inertia | 4.09 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 7 K/W |
| Thermal resistance winding-housing | 1 K/W |
| Thermal time constant winding | 4.72 s |
| Thermal time constant motor | 355 s |
| Ambient temperature | -20...+100 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Bearing type | ball bearings |
| Max. speed | 60000 rpm |
| Axial play | 0 mm, at radial load < 5 N |
| 0.14 mm, at radial load > 5 N | |
| Max. axial load (dynamic) | 4 N |
| Max. force for press fits (static) | 60 N |
| (static, shaft supported) | 250 N |
| Max. radial load | 16 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 128 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
