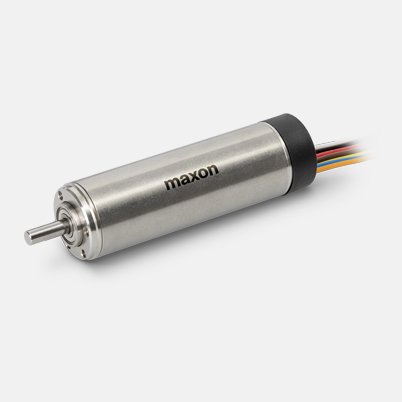

ECX PRIME 16 L Ø16 mm, brushless, with Hall sensors
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | £ 544.13* |
| 5-19 | £ 424.94* | |
| 20-49 | £ 346.26* | |
| from 50 | On request |
Specifications
| Values at nominal voltage | |
| Nominal voltage | 24 V |
| No load speed | 17700 rpm |
| No load current | 97.2 mA |
| Nominal speed | 16200 rpm |
| Nominal torque (max. continuous torque) | 24.7 mNm |
| Nominal current (max. continuous current) | 1.99 A |
| Stall torque | 305 mNm |
| Stall current | 23.6 A |
| Max. efficiency | 88 % |
| Characteristics | |
| Terminal resistance | 1.01 Ω |
| Terminal inductance | 0.033 mH |
| Torque constant | 12.9 mNm/A |
| Speed constant | 740 rpm/V |
| Speed / torque gradient | 58.2 rpm/mNm |
| Mechanical time constant | 1.39 ms |
| Rotor inertia | 2.28 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 16.7 K/W |
| Thermal resistance winding-housing | 1.65 K/W |
| Thermal time constant winding | 5.76 s |
| Thermal time constant motor | 462 s |
| Ambient temperature | -20...+100 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Bearing type | Waelzlager |
| Max. speed | 25000 rpm |
| Axial play | 0 mm, at radial load < 1 N |
| 0.14 mm, at radial load > 1 N | |
| Max. axial load (dynamic) | 1 N |
| Max. force for press fits (static) | 50 N |
| (static, shaft supported) | 1000 N |
| Other specifications | |
| Number of pole pairs | 2 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 66 g |
-
