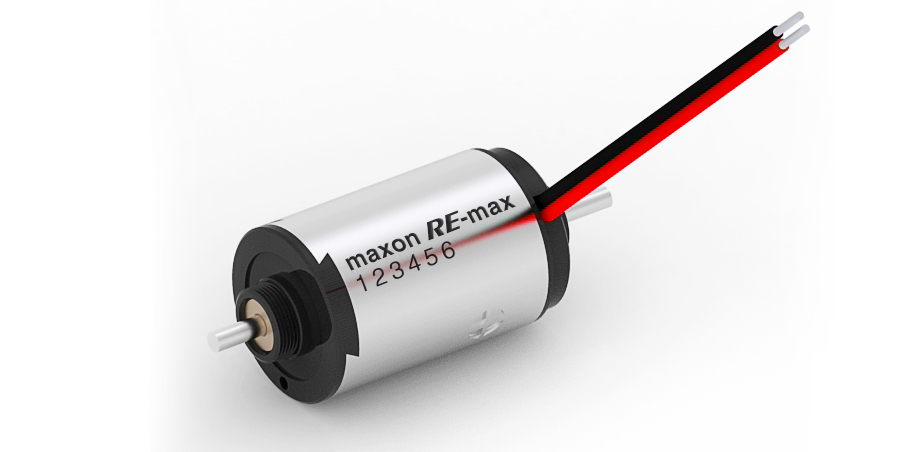

Specifications
Technical illustrations

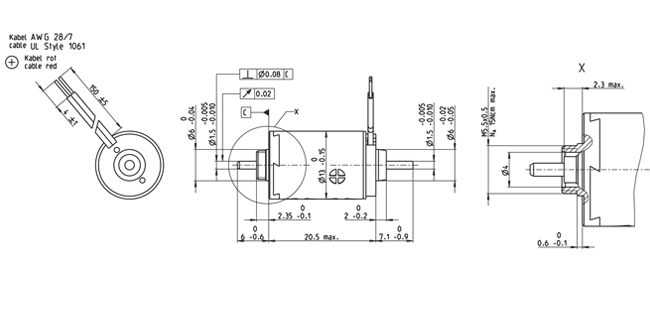

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 3.6 V |
| No load speed | 6510 rpm |
| No load current | 12.2 mA |
| Nominal speed | 1140 rpm |
| Nominal torque (max. continuous torque) | 1.3 mNm |
| Nominal current (max. continuous current) | 0.264 A |
| Stall torque | 1.61 mNm |
| Stall current | 0.316 A |
| Max. efficiency | 65 % |
| Characteristics | |
| Terminal resistance | 11.4 Ω |
| Terminal inductance | 0.223 mH |
| Torque constant | 5.08 mNm/A |
| Speed constant | 1880 rpm/V |
| Speed / torque gradient | 4210 rpm/mNm |
| Mechanical time constant | 13.8 ms |
| Rotor inertia | 0.313 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 47.5 K/W |
| Thermal resistance winding-housing | 14 K/W |
| Thermal time constant winding | 5.18 s |
| Thermal time constant motor | 186 s |
| Ambient temperature | -20...+65 °C |
| Max. winding temperature | +85 °C |
| Mechanical data | |
| Bearing type | sleeve bearing |
| Max. speed | 11000 rpm |
| Axial play | 0.05 - 0.15 mm |
| Radial play | 0.014 mm |
| Max. axial load (dynamic) | 0.8 N |
| Max. force for press fits (static) | 35 N |
| (static, shaft supported) | 240 N |
| Max. radial load | 1.4 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of commutator segments | 7 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 15 g |
-
