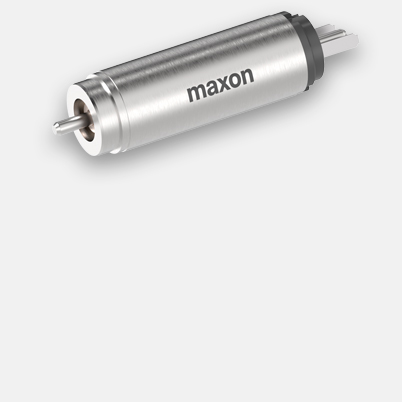

DCX 6 M Ø6 mm, precious metal brushes, sintered bearings
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | £ 76.44* |
| 5-19 | £ 66.67* | |
| 20-49 | £ 56.81* | |
| from 50 | On request |
Specifications
Technical illustrations

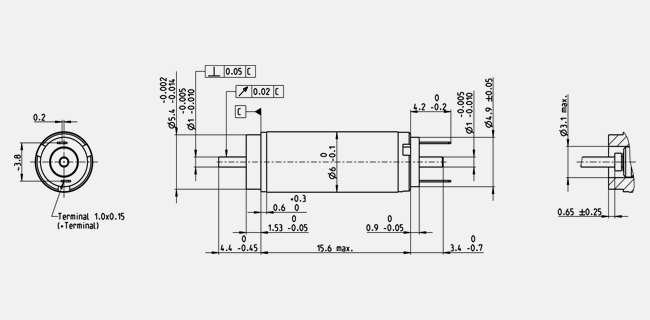

- Dimension drawing
| Values at nominal voltage | |
| Nominal voltage | 4.5 V |
| No load speed | 17600 rpm |
| No load current | 9.63 mA |
| Nominal speed | 5730 rpm |
| Nominal torque (max. continuous torque) | 0.329 mNm |
| Nominal current (max. continuous current) | 0.149 A |
| Stall torque | 0.507 mNm |
| Stall current | 0.217 A |
| Max. efficiency | 63 % |
| Characteristics | |
| Terminal resistance | 20.8 Ω |
| Terminal inductance | 0.0711 mH |
| Torque constant | 2.34 mNm/A |
| Speed constant | 4090 rpm/V |
| Speed / torque gradient | 36300 rpm/mNm |
| Mechanical time constant | 6.81 ms |
| Rotor inertia | 0.0179 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 105 K/W |
| Thermal resistance winding-housing | 20 K/W |
| Thermal time constant winding | 1.9 s |
| Thermal time constant motor | 79 s |
| Ambient temperature | -30...+85 °C |
| Max. winding temperature | +100 °C |
| Mechanical data | |
| Bearing type | sleeve bearing |
| Max. speed | 17300 rpm |
| Axial play | 0.02 mm, at radial load < 0 N |
| 0.1 mm, at radial load > 0 N | |
| Radial play | 0.012 mm |
| Max. axial load (dynamic) | 0.1 N |
| Max. force for press fits (static) | 10 N |
| (static, shaft supported) | 100 N |
| Max. radial load | 0.4 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of commutator segments | 5 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 2 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
maxon DCX motors offer unrivaled power density (torque per volume) and absolutely quiet running. The robust engineering, combined with the globally patented ironless winding, make the DCX motors a highly dynamic drive for almost every application scenario.
The DCX 6 M is available as a small drive with ball bearings or sintered bearings.
