Beyond combinations. Configure your drive individually.

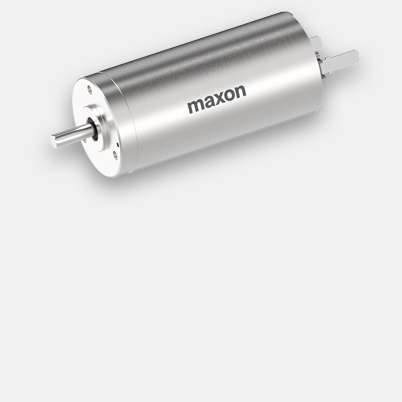

DCX 22 L Ø22 mm, Precious Metal Brushes CLL, ball bearings
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | £ 208.42* |
| 5-19 | £ 181.87* | |
| 20-49 | £ 155.12* | |
| from 50 | On request |
Specifications
Technical illustrations

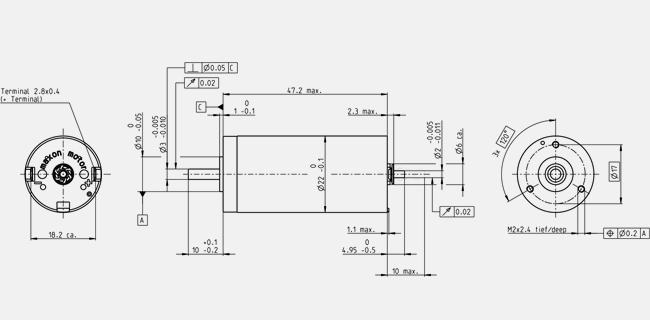

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 12 V |
| No load speed | 4980 rpm |
| No load current | 20 mA |
| Nominal speed | 4000 rpm |
| Nominal torque (max. continuous torque) | 29.5 mNm |
| Nominal current (max. continuous current) | 1.3 A |
| Stall torque | 150 mNm |
| Stall current | 6.54 A |
| Max. efficiency | 89 % |
| Characteristics | |
| Terminal resistance | 1.84 Ω |
| Terminal inductance | 0.192 mH |
| Torque constant | 22.9 mNm/A |
| Speed constant | 416 rpm/V |
| Speed / torque gradient | 33.3 rpm/mNm |
| Mechanical time constant | 3.14 ms |
| Rotor inertia | 9 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 13.6 K/W |
| Thermal resistance winding-housing | 4.57 K/W |
| Thermal time constant winding | 21.4 s |
| Thermal time constant motor | 646 s |
| Ambient temperature | -40...+85 °C |
| Max. winding temperature | +100 °C |
| Mechanical data | |
| Bearing type | Waelzlager |
| Max. speed | 7160 rpm |
| Axial play | 0 mm, at radial load < 2.5 N |
| 0.1 mm, at radial load > 2.5 N | |
| Radial play | 0.02 mm |
| Max. axial load (dynamic) | 2.5 N |
| Max. force for press fits (static) | 30 N |
| (static, shaft supported) | 440 N |
| Max. radial load | 16 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of commutator segments | 9 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 95 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
maxon DCX motors feature unrivaled power density (torque per volume) and absolutely quiet running. The robust engineering, combined with the globally patented ironless winding, makes the DCX motors a highly dynamic drive for almost every application scenario.The DCX 22 S is a true configuration miracle. Preloaded ball bearings or sintered bearings, graphite or precious metal brushes, optionally with CLL, EMI filter etc. – this wide range of choices forms the basis for a large area of application.
