Specifications
Technical illustrations

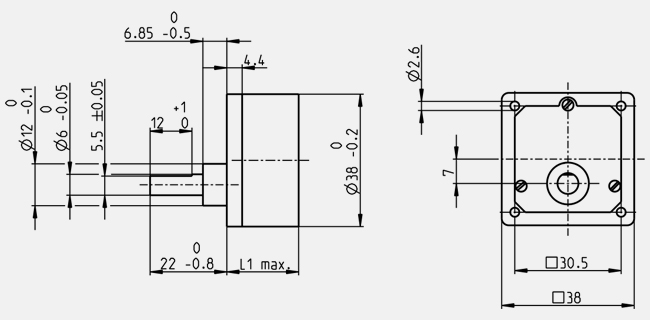

- Dimension drawing
Information: Drawings are not to scale.
| General information | |
| Gearhead type | GS |
| Outer diameter | 38 mm |
| Version | Standard version |
| Gearhead Data | |
| Reduction | 30 : 1 |
| Absolute reduction | 30/1 |
| Max. motor shaft diameter | 3 mm |
| Number of stages | 3 |
| Max. continuous torque | 0.2 Nm |
| Max. intermittent torque | 0.6 Nm |
| Direction of rotation, drive to output | != |
| Max. efficiency | 73 % |
| Average backlash no load | 1.5 ° |
| Mass inertia | 0.4 gcm² |
| Gearhead length (L1) | 23.1 mm |
| Max. transmittable power (continuous) | 3.5 W |
| Max. transmittable power (intermittent) | 10 W |
| Technical Data | |
| Bearing at output | sleeve bearing |
| Radial play | max. 0.1 mm, 12 mm from flange |
| Axial play | 0.03 - 0.2 mm |
| Max. radial load | 50 N, 12 mm from flange |
| Max. axial load (dynamic) | 30 N |
| Max. force for press fits | 500 N |
| Max. continuous input speed | 5000 rpm |
| Max. intermittent input speed | 5000 rpm |
| Recommended temperature range | -5...+80 °C |
| Extended temperature range | 80...+80 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 60 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
