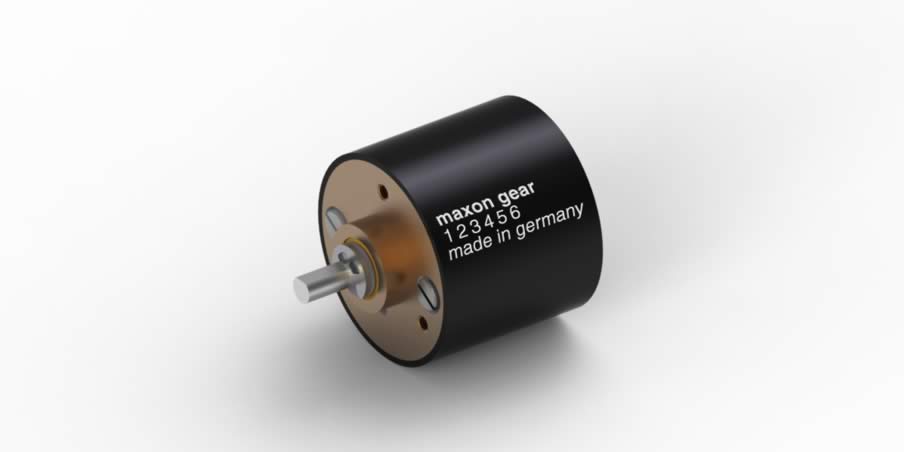

Spur Gearhead GS 24 A Ø24 mm, 0.1 Nm
Part number 110483
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | £ 62.77 |
| 5-19 | £ 57.21 | |
| 20-49 | £ 45.00 | |
| from 50 | On request |
Specifications
Technical illustrations

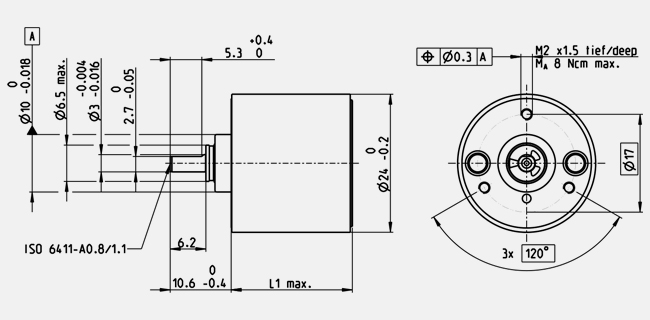

- Dimension drawing
Information: Drawings are not to scale.
| General information | |
| Gearhead type | GS |
| Outer diameter | 24 mm |
| Version | Standard version |
| Gearhead Data | |
| Reduction | 64 : 1 |
| Absolute reduction | 837/13 |
| Max. motor shaft diameter | 2 mm |
| Number of stages | 4 |
| Max. continuous torque | 0.1 Nm |
| Max. intermittent torque | 0.15 Nm |
| Direction of rotation, drive to output | = |
| Max. efficiency | 66 % |
| Average backlash no load | 2 ° |
| Mass inertia | 0.007 gcm² |
| Gearhead length (L1) | 17.4 mm |
| Max. transmittable power (continuous) | 0.65 W |
| Max. transmittable power (intermittent) | 0.98 W |
| Technical Data | |
| Bearing at output | sleeve bearing |
| Radial play | max. 0.038 mm, 8 mm from flange |
| Axial play | 0.03 - 0.3 mm |
| Max. radial load | 5 N, 8 mm from flange |
| Max. axial load (dynamic) | 8 N |
| Max. force for press fits | 500 N |
| Max. continuous input speed | 4000 rpm |
| Max. intermittent input speed | 4000 rpm |
| Recommended temperature range | -15...+80 °C |
| Extended temperature range | 80...+100 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 28 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
