Specifications
Technical illustrations

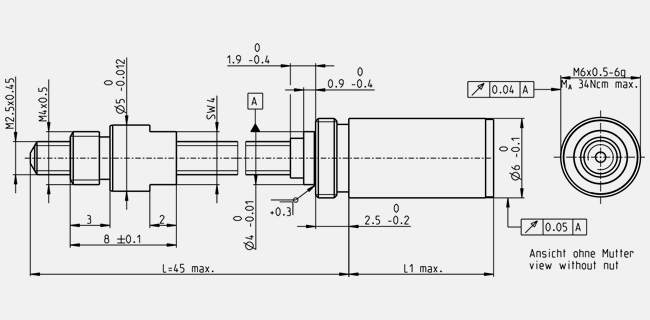

- Dimension drawing
| General information | |
| Gearhead type | GP |
| Outer diameter | 6 mm |
| Version | Spindle drive with metric screw |
| Gearhead Data | |
| Number of stages | 4 |
| Reduction | 221 : 1 |
| Absolute reduction | 531441/2401 |
| Max. motor shaft diameter | 1 mm |
| Max. feed velocity | 0.7 mm/s |
| Max. feed force continuous | 6 N |
| Max. feed force intermittent | 18 N |
| Direction of rotation, drive to output | = |
| Max. efficiency | 19 % |
| Average backlash no load | 2.5 ° |
| Mechanical positioning accuracy | 0.107 mm |
| Mass inertia | 0.001 gcm² |
| Gearhead length (L1) | 14.5 mm |
| Max. transmittable power (continuous) | 0.008 W |
| Max. transmittable power (intermittent) | 0.024 W |
| Technical Data | |
| Spindle length | 40.4 mm |
| Bearing at output | ball bearing |
| Radial play | max. 0.12 mm, 5 mm from flange |
| Max. radial load | 5 N, 5 mm from flange |
| Max. force for press fits | 10 N |
| Max. continuous input speed | 12000 rpm |
| Max. intermittent input speed | 40000 rpm |
| Recommended temperature range | -15...+80 °C |
| Product | |
| Weight | 4 g |
