| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | £ 528.51 |
| 5-19 | £ 455.01 | |
| 20-49 | £ 403.46 | |
| from 50 | On request |
Specifications
Technical illustrations

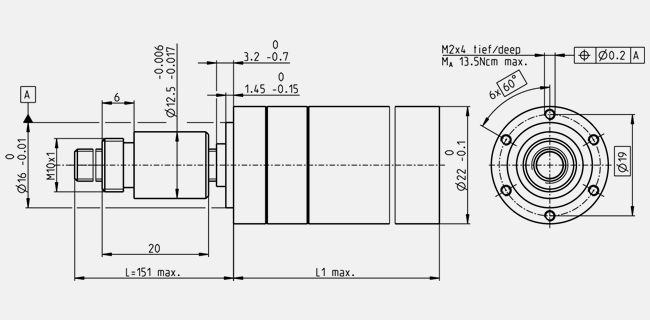

- Dimension drawing
Information: Drawings are not to scale.

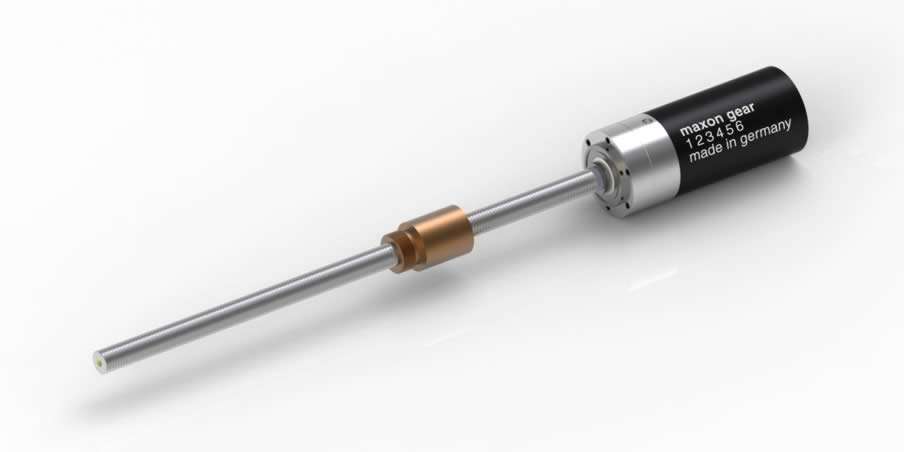

| General information | |
| Gearhead type | GP |
| Outer diameter | 22 mm |
| Version | Spindle drive with metric screw |
| Gearhead Data | |
| Number of stages | 3 |
| Reduction | 89 : 1 |
| Absolute reduction | 4617/52 |
| Max. motor shaft diameter | 3.2 mm |
| Max. feed velocity | 1.5 mm/s |
| Max. feed force continuous | 171 N |
| Max. feed force intermittent | 351 N |
| Direction of rotation, drive to output | = |
| Max. efficiency | 25 % |
| Average backlash no load | 1.6 ° |
| Mechanical positioning accuracy | 0.034 mm |
| Mass inertia | 0.3 gcm² |
| Gearhead length (L1) | 51.6 mm |
| Max. transmittable power (continuous) | 4.7 W |
| Max. transmittable power (intermittent) | 7.5 W |
| Technical Data | |
| Spindle length | 150 mm |
| Radial play | max. 0.05 mm, 5 mm from flange |
| Axial play of the nut | max. 0.008 mm |
| Max. radial load | 180 N, 15 mm from flange |
| Max. force for press fits | 550 N |
| Max. continuous input speed | 8000 rpm |
| Max. intermittent input speed | 8000 rpm |
| Recommended temperature range | -15...+80 °C |
| Extended temperature range | 80...+80 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 128 g |
