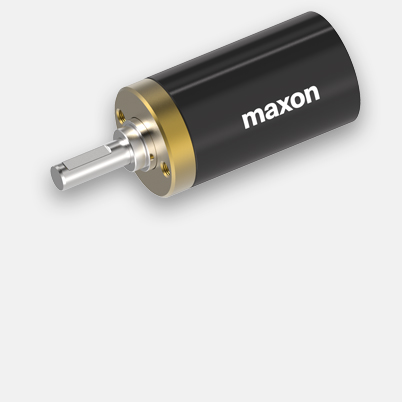

Planetary Gearhead GP 13 A Ø13 mm, 0.2 - 0.35 Nm, Metal Version, Ball Bearing
Part number 352393
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | £ 117.05 |
| 5-19 | £ 98.40 | |
| 20-49 | £ 84.05 | |
| from 50 | On request |
Specifications
Technical illustrations

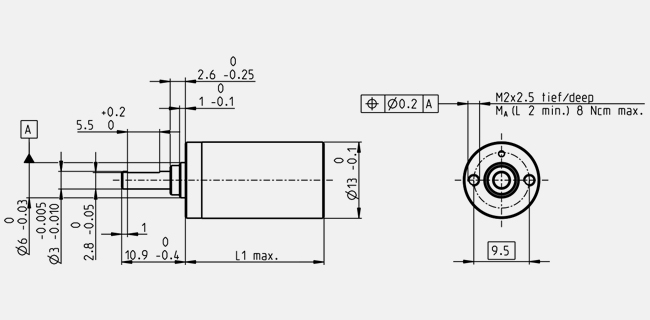

- Dimension drawing
Information: Drawings are not to scale.
| General information | |
| Gearhead type | GP |
| Outer diameter | 13 mm |
| Version | Standard version |
| Gearhead Data | |
| Reduction | 131 : 1 |
| Absolute reduction | 287496/2197 |
| Max. motor shaft diameter | 1.5 mm |
| Number of stages | 3 |
| Max. continuous torque | 0.3 Nm |
| Max. intermittent torque | 0.45 Nm |
| Direction of rotation, drive to output | = |
| Max. efficiency | 75 % |
| Average backlash no load | 1.5 ° |
| Mass inertia | 0.015 gcm² |
| Gearhead length (L1) | 23.7 mm |
| Max. transmittable power (continuous) | 1.9 W |
| Max. transmittable power (intermittent) | 2.9 W |
| Technical Data | |
| Bearing at output | ball bearing |
| Radial play | max. 0.04 mm, 6 mm from flange |
| Axial play | 0 - 0.04 mm |
| Max. radial load | 20 N, 6 mm from flange |
| Max. axial load (dynamic) | 8 N |
| Max. force for press fits | 25 N |
| Max. continuous input speed | 8000 rpm |
| Max. intermittent input speed | 8000 rpm |
| Recommended temperature range | -15...+100 °C |
| Extended temperature range | 100...+100 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 17 g |
