Part number 001725


For more information, please contact our sales support with the request form. Thank you


Weight 500 g
Digital incremental encoder (2-channel, single-ended) Yes
Digital incremental encoder (2-channel, differential) Yes
Digital incremental encoder (3-channel, differential) Yes
Operating modes
Speed controller (closed loop) Yes
Position controller Yes
Electrical data
Logic supply voltage Vc (min.) optional 18 V
Logic supply voltage Vc (max.) optional 30 V
Sampling rate PID positioning controller 1 kHz
Encoder signals A, A\, B, B\, I, I\
Max. encoder input frequency 5 MHz
Digital inputs 10
Functionality of digital inputs free programmable
Analog inputs 2
Resolution, range, circuit 10-bit, 0…+10V
Functionality of analog inputs free programmable
Functionality of the DIP switch Node ID, CAN Bus Termination
Digital outputs 4
Functionality of digital outputs free programmable
Voltage outputs
Encoder supply voltage +5V DC, max. 200mA
Sensor supply voltage +5V DC, max. 200mA
RS232 yes
USB (full speed) yes
CANopen Master / Slave
CANopen application layer CiA 301
EtherCAT EtherCAT Master, EtherCAT Slave and Ethernet
CoE (CAN application layer over EtherCAT) yes
Distributed Clocks Support Yes
Variable PDO mapping Yes
Status indicator "Ready" green and yellow LED
Status indicator "Error" red LED
Status indicator of communication interface yes
Protective functions
Protective functions free programmable
Ambient conditions
Temperature – Operation (min.) -30 °C
Temperature – Operation (max.) 50 °C
Temperature – Storage (min.) -30 °C
Temperature – Storage (max.) 85 °C
Humidity (non-condensing) (min.) 5 %
Humidity (non-condensing) (max.) 90 %
Mechanical data
Weight 500 g
Dimension (length) 108 mm
Dimension (width) 108 mm
Dimension (height) 67 mm
Mounting DIN Rail or back wall mounting
Installation program ApossIDE
Graphical User Interface ApossIDE
Operating system Windows 10, 7
Windows DLL for PC 32-/64-bit
Linux Shared Object Library X86 32-/64-bit
CAN Interfaces USB CAN Adapter
Programming example ApossC_SDK, MS Visual C#, MS Visual C++
Velocity mode Yes
Current mode Yes
Master Encoder Mode Yes
Analog set value Yes
Path generator with sinusoidal/trapezoidal profiles Yes
Position Control Feed Forward Yes
Velocity Control (Feed Forward) Yes
Position Marker / Touch Probe Yes
Quickstop Yes
Enable Yes
Position Compare Yes
Control of holding brakes Yes

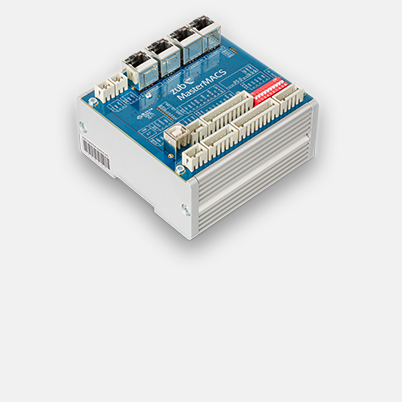

The MasterMACS is a free programmable high performance Motion Controller without Amplifiers. This controllers offers hard real time behaviour an calculates up to 32 axis with high precision for positioning or synchronisation. A lot of interfaces like EtherCAT Master/Slave, Ethernet, 2 x CAN, RS232 etc. make its easy to integrate it into your drive concept.
